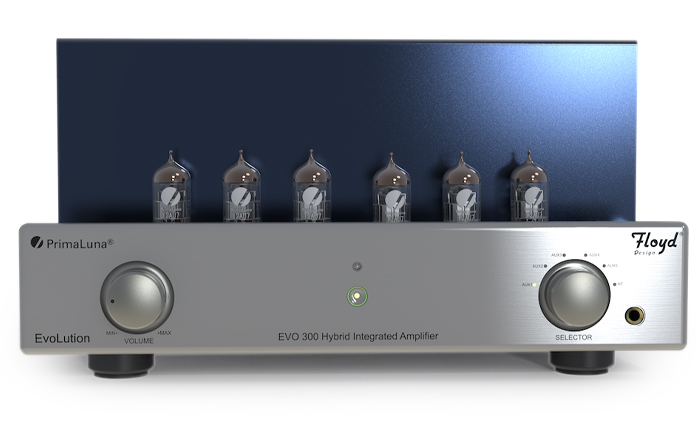

> EVO 300 Hybrid Geïntegreerde Hybrid versterker Floyd Design



Our first PrimaLuna Hybrid Integrated Amplifier comes with a PrimaLuna designed tube pre-stage section and a Floyd Mosfet power stage. Durob’s Jan de Groot designs
the latter. Mosfets are the closest in solid-state to tubes and a logical choice for expanding a tube-based only range. Jan has been designing with Mosfets as a profession since 1995. PrimaLuna was established in 2003.

The Primaluna pre-stage uses our well known six pieces 12AU7 configuration. The Floyd Mosfet power stage uses paired Linear Systems JFETs and 20N20/20P20 Mosfets resulting in a 2 x 100 Watt power rating at 8 Ohm.

Where possible, we use hard wiring, and if PCBs are needed, we use the highest quality PCBs available (2.5mm thick instead of the standard 1.6mm), 105um (usually 35um) gold plated copper tracks.

The PrimaLuna pre-stage uses two power supplies (including two separate transformers), while the power stage comes with a single 500VA transformer. The starting point for all the power supplies is our AC Offset Killer circuit.

The amplifier comes with six inputs (5 x Line RCA, 1 x HT) and outputs (tape out, stereo/mono sub, headphone and speakers, of course). It arrives with a fully shielded heavy-metal sub-chassis for the optional MM phono stage.

Construction is extremely solid and robust, as usual, and puts 25kg net on the scale, while the looks are elegant for such a heavy amplifier. Lean & Mean!

In all PrimaLuna products, we use high-quality parts and wiring for the best sonic results and the highest reliability. Takman, DuRoch, Nichicon, Alps, Linear Systems, Rubycon, Kemet are some of the brands we use.

First comments from audio professionals from all over the world are coming in now and sound good! Production is running, and at the end of the year, early next year, we hope to have sufficient stocks around the world, despite the global lack of various electronic components.

Specifications
- Tube Complement: 6 x 12AU7
- Power 8 Ohm: >100 Watts per channel (typical 115 Watts)
- Power 4 Ohm: >150 Watts per channel (typical 170 Watts)
- Frequency Response: 10 Hz – 80 kHz +/- 3 dB
- THD: < 0.2% 100W @ 8 Ohm
- S/N Ratio: -105dB (A-Weighted)
- Input Impedance: 34 kOhm
- Input Sensitivity: 415 mV
- Total Gain (Pre + Power Amp): 37.2 dB (7dB + 30.2dB)
- Inputs: 5 pairs Stereo RCA, 1 pair Home Theater Input
- Outputs: Speaker Taps, Tape, Stereo/Mono Sub, Headphone
- Damping Factor: 160 (1 kHz)
- Power Consumption: 99 Watts (no signal in); 645W@4R
- Weight Net weight: 59.5 lbs / 29 kg
- Shipping Weight: 68.3 lbs / 25 kg
- Dimensions: 15.9" x 15.2" x 8.1" / 405 x 385 x 205 mm (L x W x H)
- Shipping Dimensions: 22.7" x 18.4" x 12.4" / 578 x 468 x 316 mm (L x W x H)




> Reviews



De Techniek The Technology De Muziek The Music









> Awards




PrimaLuna EVO 300 Hybrid Integrated Amplifier!

"The EVO 300 is the result of a collaborative effort between PrimaLuna and sister company Floyd Design. It represents a departure from PrimaLuna’s all-valve amplifiers, as it marries the EVO 300 preamp’s 12AU7 front end with a MOSFET power stage. The goal was to combine the virtues of tube and solid-state amplification. Expect fabulous dynamics and low-end solidity, but the real magic is in the integration of the tube and solid-state sections. Excellent performance at the frequency extremes is coupled with considerable tube magic. Especially with analog sources, the sound stage depth and width perspectives are remarkably spacious. This is the hybrid amp DO has been waiting decades for. It is neither bright nor texturally challenged; rather, it exudes musical finesse. And that means 3D soundstaging and the ability to wow the listener with the music’s fire and drama. A Dutch treat for the discriminating music lover."



Dick Olsher – The Absolute Sound Magazine
