  MOON INTEGRATED AMPLIFIERS PRODUCTS

Drop Down Menu



uitvoering Two Tone



> 340iX (D3PX) Geïntegreerde versterker



Leverbaar in twee uitvoeringen
340i X
Geïntegreerde versterker incl XLR ingang
340i D3PX
Geïntegreerde versterker incl. D3 DAC kaart en Phono kaart

Als extra optie voor de 340i (=ouder model):
- D3 = DAC-kaart, 4 inputs , DSD64/128/256 + tot 32bit/384kHz op USB
- P = MM/ MC Phono-kaart volledig configureerbaar
- X = XLR Module

Endless possibilities
The 340i X Integrated Amplifier integrated allows you to integrate your music system in distinctively new ways.

Musical authority
Combining high power, sonic finesse and superb flexibility, the 340i X will seduce you with its musical authority, as well as its rich, engaging and lifelike sound quality.

Winner
Winner of 12 awards, the 340i X can easily be the centerpiece of your music and entertainment system. Needless to say, the 340i X integrated amplifier is constructed to the highest standards that has made MOON products famous around the world.

Key features
Of course, key features you’d expect in a MOON Neo Series product are present such as SimLink™, 12V trigger, RS-232 and IR ports for custom-install environments.

Design features

  • 6 (six) line-level inputs including a front-mounted 1/8” mini-jack for personal media players.

  • 1 (one) pair of balanced input (XLR).

  • Headphone output on 1/4” jack located on the front panel.

  • A massive oversized power supply using a custom toroidal transformer design.

  • “Class A” output to 5 watts for greater efficiency.

  • One audio input which functions as a “pass-through”, bypassing the gain stage to accommodate components like a home-theater processor, whose own volume control is used instead.

  • Precision matched proprietary MOON Bipolar output transistors for improved bass response and accurate sonic reproduction.

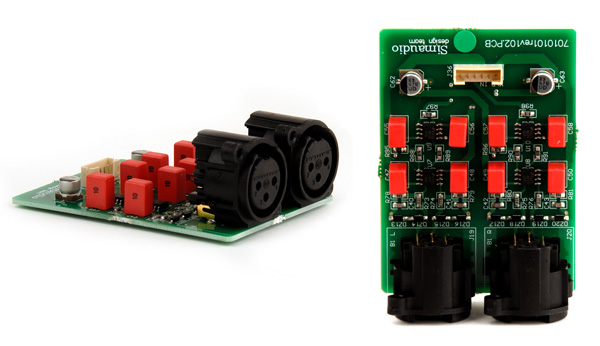

X = XLR-kaart met gebalanceerde ingangen
Wordt standaard geleverd in de MOON 340i X en 340i D3PX
Als extra optie verkrijgbaar voor de MOON 340i(= ouder type)





 D3 = DAC-kaart, 4 inputs , DSD64/128/256 + tot 32bit/384kHz op USB
Als extra optie verkrijgbaar voor de MOON 340i
Wordt standaard geleverd in de MOON 340i D3PX


P = MM/ MC Phono-kaart volledig configureerbaar
Als extra optie verkrijgbaar voor de MOON 340i
Wordt standaard geleverd in de MOON 340i D3PX

Specifications
- Output Power at 8Ω: 100 W per channel
- Output Power at 4Ω: 200 W per channel
- Input Sensitivity: 370mV - 3.0V RMS
- Input Impedance: 11,000Ω
- Gain: 37dB
- Signal-to-noise Ratio: 110dB @ full power
- Frequency response (full range): 2Hz - 90kHz +0/-3dB
- Crosstalk: -88dB
- THD (20Hz - 20kHz @ 1 W): 0.015%
- THD (20Hz - 20kHz @ 100 W: 0.05%
- Intermodulation distortion: 0.03%
- Optional Digital Inputs: S/PDIF, USB, Optical
- Maximum PCM Resolution: 32-bit / 384kHz
- DSD sample rates: DSD64, DSD128 & DSD256
- Shipping weight: 28 lb / 13 kg
- Dimensions (width x height x depth): 16.9 x 3.5 x 14.8 in, 42.9 x 8.9 x 37.6 cm

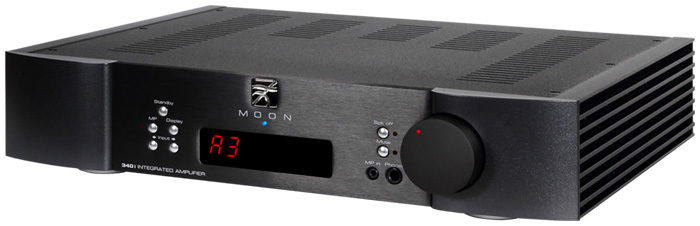

uitvoering zwart



> 340iX documenten


> Prijslijst MOON

> Brochure Download

> Handleiding Download


> Reviews


> Awards


Incl. remote control CRM-3
