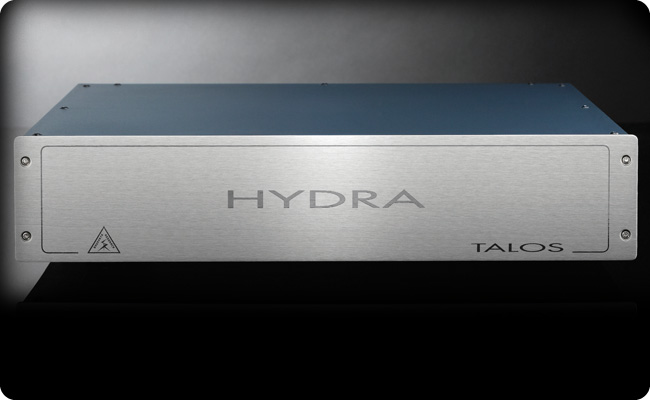

Hydra Talos is
the result of a ten year research
and development cycle intended to
perfect high-performance, maximum
current power-distribution for film,
recording and Audio/-Video
industries. The series of material
technologies within the Hydra Talos
and Triton are exclusive to the
designs of research scientist Caelin
Gabriel.
Hydra Technical features
MPDA (Multi-Phase Differential Array)
Three years of development using
DTCD Analysis and spectrum analysis
has produced Shunyata Research's
exclusive Multi-Phase Differential
Array. The MPDA reduces power line
noise without the negative effects
of simple capacitors and the current
limiting of coils and transformers.
NIC (Noise Isolation Chambers)
Noise Isolation Chambers reduce
power line noise in the megahertz to
gigahertz range. The NICs are patent
pending and utilize Shunyata
Research's ZrCa-2000 ferroelectric
noise reduction compound.
ZPP-DS (Zero-Point Power
Distribution System)
ZPP-DS significantly reduces the
number of wires and connection
points within the power distribution
system. The A.C. outlet contacts and
main electrical buss system are
unified into a single electrical
point of contact, while eliminating
the multiple runs of wiring needed
in conventional distribution systems.
ZPP-DS also eliminates differential
metal-to-metal diode-like distortion
effects.
VTX Geometry Conductors
Shunyata Research has developed what
might be the world's perfect power
conductor geometry. VTX wire
geometry simulates a hollow
conductor, which minimizes inherent
inductive reactance and skin effect,
improving DTCD instantaneous current
propagation.
CDA-101 Copper
CDA 101 copper is the highest purity
copper on the metals market. It
comes with papers that prove its
authenticity. This is the only type
of copper that Shunyata Research
uses in its electrical products,
from signal cables to power cords
and power conditioners.
Maximum voltage
- Max Voltage: 125VAC (US)
- Max Voltage: 230VAC (Asia)
- Max Voltage: 240VAC (Euro)
Current ratings
- Max continuous current: 20 Amps
(US) / 16 Amps (Euro)
- Peak instantaneous current: >200
Amps (800us)
Surge suppression
- Max surge current: 80,000 Amps
(8 / 50ms)
Noise reduction technology
- 1 Shunyata MPDA (Multi-phase
differential array) (reduces impulse
and broadband noise)
- 3 NIC (Noise Isolation Chambers)
ZrCa (ferroelectric noise reduction
compound)
Length: 203mm x Diameter: 38mm
Over current protection
- Hydraulic electromagnetic
breaker (eliminates thermal noise)

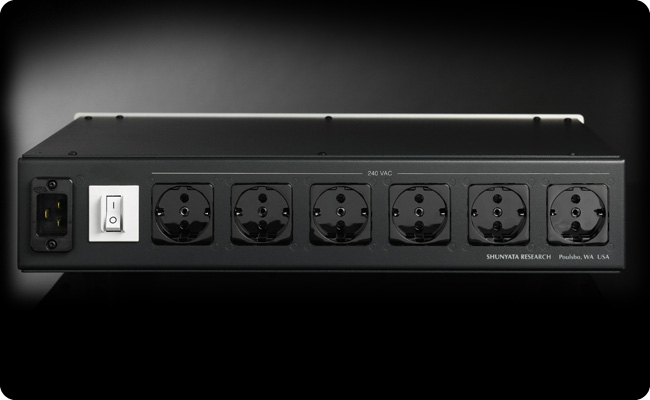

Connectors
- Inlet: IEC-C20 (requires a power
cord with a C19 connector)
- 6 Euro Outlets: EU1-16R
Wiring / Buss system
9-AWG VTX conductors
(Cryogenic CDA-101 oxygen free
copper)
- ZP-PDS (Zero-point power
distribution system) Pure copper /
zinc alloy Cryogenically treated
Construction
- 14 gauge steel chassis
- Aluminum faceplate
Dimensions WxDxH
43,8 x 41,9 x 10,8 cm
Weight
10 kg |
