> XONO phono voorversterker

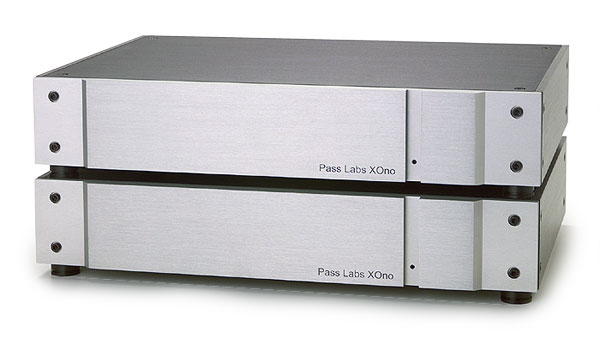

The Xono is a high performance phono preamplifier for use with moving magnet, moving iron and moving coil cartridges. It features extremely low noise and distortion, high output swing, variable cartridge loading, variable gain, and balanced output. The Xono design was based on listening and not measurements. Considering this, it is perhaps remarkable that the final product displays such spectacular objective qualities. A wide range of phono cartridges were used in the development of the Xono, critically evaluated and selected over a wide range of output sensitivity. Continuous listening and circuit refinements led to the current production version of the Xono. We believe that the versatility and measured specifications of this phono preamp, combined with its refined styling and state-of-the-art construction, mark it as one of the finest phono preamplifiers available on the market today…


Gain: 40dB @ 1kHz (MM) fixed output
71dB @ 1kHz (MC) single-ended
76dB @ 1kHz (MC) balanced
RIAA response: +/- 0.1dB 20-20kHz
Distortion: @ 1KHz <0.05% THD @ 20V
Output Impedance: 300 Balanced, 300 Single-ended
Input Impedance: 47K or 1K / 0-650 pF (MM)
5ohm - 47K (MC)
Maximum Output: 20 volts
Unweighted Noise: -90dB ref. 10mV (MM)
-81dB ref. 1mV (MC)
Power consumption: 20 watts


beide units:

Gewicht: 20,8kg
Breedte: 432 mm
Hoogte: 88 mm
Diepte: 292 mm
