> 780D v2 Streaming DAC



MiND 2 streaming module
MiND 2 (MOON intelligent Network Device) is a fabulous way of streaming and listening to your music. MiND 2 allows the playback of all the most common file formats, including DSD and MQA. The MiND 2 also boasts a USB host port, permitting access to music on USB thumb drives. Finally, MiND 2 will also stream any digital or analog input of the 780D v2 to other MiND 2 zones on the same network.

Roon Ready & full MQA decoding
MiND 2 is Roon Ready and allows the playback of all the most common file formats, including DSD, and MQA file formats (via local files and TIDAL Master files).

Sophisticated, future proof, audiophile design
“With its luxurious-looking case of aircraft-grade aluminum, exemplary build quality, unparalleled connectivity, and onboard MiND streamer, the 780D is a distinctive product worthy of its flagship title.” – Aron Garrecht, SoundStage!

The finest digital source for astounding detail retrieval
“It [780D] is a really mature device that practically does not have a weakness and which belongs to a category that will make you feel the complete experience of music, not only listen to it. And that’s a lot of “wow”! – Translation from Daniel Březina, Hi-Fi Voice

Design features
- Roon Ready device
- DSD and MQA decoding from all digital inputs
- Tidal Masters, Deezer Hi-Fi and Qobuz Sublime+ Music Services
- Multi-room synchronized playback

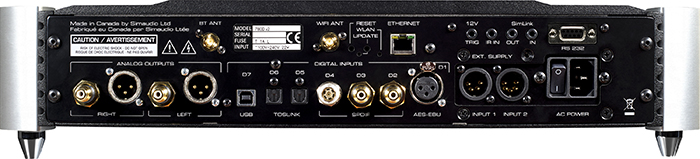

- 9 digital inputs : USB, AES/EBU, SPDIF, Optical, Ethernet, Wi-Fi and aptXTM audio for Bluetooth®

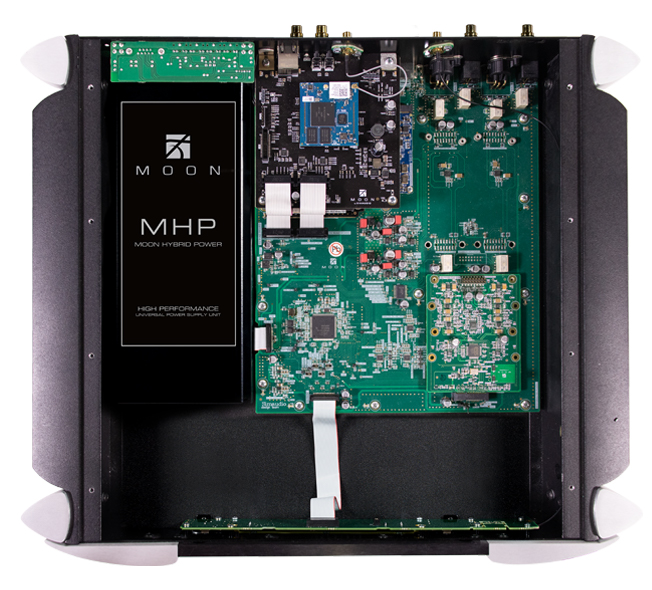

- PS using new MOON Hybrid Power (MHP) for exceptionally stable, ultra low noise DC output
- Femto second clock resulting in much lower jitter and consequently lower distortion
- 12 stages of DC voltage regulation which includes 2 stages of M-LoVo (MOON Low Voltage
  Regulation) and 4 stages of i2DCf (Independant Inductive DC Filtering)
- On-board programmable software for customization of the end-user interface

Specifications
- Frequency response (full range): 2Hz - 100kHz +0/-3dB
- THD @ 1kHz, 0dBFS (A-weighted): 0.0001 %
- Intermodulation distortion: 0.0001 %
- Dynamic Range: 124 dB
- Signal-to-noise Ratio: 124 dB @ full output
- Channel Separation: 120 dB
- Intrinsic Jitter: 150 femto seconds RMS
- Analog Output @ 0dBFS: 2.0 V
- Analog output impedance: 100 Ω
- PCM Bit-depth range: 16 - 32 bits
- PCM sampling frequency rates: 44.1 - 384 kHz
- DSD sample rates: DSD64, DSD128 & DSD256
- Shipping weight: 38 lb / 18 kg
- Dimensions (width x height x depth): 18.75 x 4.0 x 16.8 in, 47.6 x 10.2 x 42.7 cm
