> 680D Streaming DAC


MiND 2 streaming module
MiND 2 (MOON intelligent Network Device) is a fabulous way of streaming and listening to your music. The 680D is designed to deliver an outstanding high-resolution streaming experience through music services such as Tidal Masters, Qobuz Sublime+ and Deezer Hi-Fi. The DAC architecture supports PCM (up to 32-bit/384kHz), DSD (up to DSD256) and is MQA certified.

Roon Ready & full MQA decoding
The 680D is Roon Ready and allows the playback of all the most common file formats, including DSD, and MQA file formats via all inputs.

A Team Player
The 680D is the prodigal little brother of the 780D, and it is the best buddy of the 600i v2. Together, they form a great pair to recreate the best sound for your favourite music.

What are the main differences between the MOON 680D and the MOON 780D?
There are two main differences between those two models. The 780D has 2x ESS DACs, each configured in Mono (one per channel) for highest performance. It also use a femto second clock, which is superlative high-end clock system of the highest calibre. The 680D uses only one ESS DAC and a good clock of pico second rating. (A femto second is 1000 time smaller than a pico second.) In conclusion, both unit shares highly similar sonic signature, but the 780D has the edge on soundstage depth and microdetails. The 680D represents amazing value for who can get a big portion of the 780D performance for more affordable price. The new 680D makes such a great combo with a 600i v2.

Design features
- Roon Ready device
- DSD and MQA decoding from all digital inputs
- Tidal Masters, Deezer Hi-Fi and Qobuz Sublime+ Music Services
- Multi-room synchronized playback

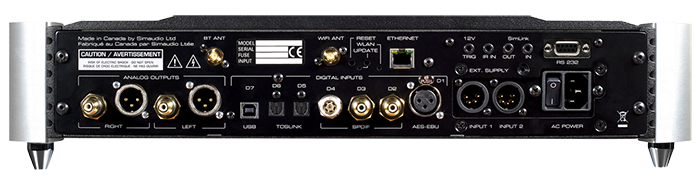

- 9 digital inputs : USB, AES/EBU, SPDIF, Optical, Ethernet, Wi-Fi and aptXTM audio for Bluetooth®
- Power supply using new MOON Hybrid Power (MHP) for exceptionally stable, ultra low noise
  DC output
- 12 stages of DC voltage regulation which includes 2 stages of M-LoVo (MOON Low Voltage
  Regulation) and 4 stages of i2DCf (Independant Inductive DC Filtering)
- On-board programmable software for customization of the end-user interface

- Frequency response (full range): 2Hz - 100kHz +0/-3dB
- THD @ 1kHz, 0dBFS (A-weighted): 0.0005 %
- Intermodulation distortion: 0.0003 %
- Dynamic Range: 123 dB
- Signal-to-noise Ratio: 123 dB @ full output
- Channel Separation: 120 dB
- Intrinsic Jitter: 1 pico seconds RMS
- Analog Output @ 0dBFS: 2.0 V
- Analog output impedance: 100 Ω
- PCM Bit-depth range: 16 - 32 bits
- PCM sampling frequency rates: 44.1 - 384 kHz
- DSD sample rates: DSD64, DSD128 & DSD256
- Shipping weight: 38 lb / 18 kg
- Dimensions (width x height x depth): 18.75 x 4.0 x 16.8 in, 47.6 x 10.2 x 42.7 cm

In the Box
- AC power cable
- FRM-3 remote control with three ‘AAA’ batteries
- ‘SimLink™’ cable with 1/8” mini plug terminations on each end
- 2x Wi-Fi antenna
- Owner’s manual
