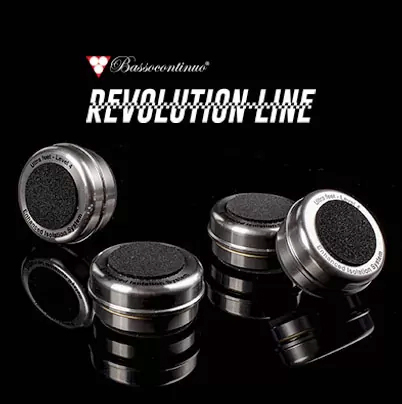

Bassocontinuo Ultra Feet Enhanced Isolation
system |
| |
|
The first
fully laboratory tested isolation
system.
It drastically reduces the
possibility of negative vibrations
reaching your components, dispersing
energy in the form of heat. Focus on
the stage, greater detail and
increased dynamics are just some of
the parameters that benefit from it.
The first fully tested isolation
system
Ultra Feet was born to optimize
visco-elastic materials depending on
load charge, making a specific
product with a limited useful range
to precise parameters: we are in
fact completely against full range
products which cannot have the same
effectiveness. Ultra Feet is
actually available in 7 levels (in
terms of dimensions and
performance). Each one is calibrated
on a specific load charge range,
with two or three different damping
materials (depends on the level):
all of them are fully tested by
Vicoter.

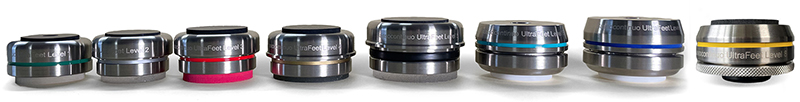

Seven models designed to optimize
the effectiveness of your
electronics
Levels 2, 3, 4, 5, 6 and 7 are
adjustable in height: this
guarantees a fine tuning of your set
up.
-
Superior
levels are decoupled by
Technogel®: up to now the best
fluid-solid material on the
market. Technogel® combines 3D
fluid deformation, therefore the
upmost damping rate, with memory
form of solid which guarantee
constant performance during its
life.
-
Each feet is
deoupled on both sides (shelf
and electronic), makes it a
full-fledged independent system.
The electronic is floating on it,
avoiding any kind of mechanical
coupling.
-

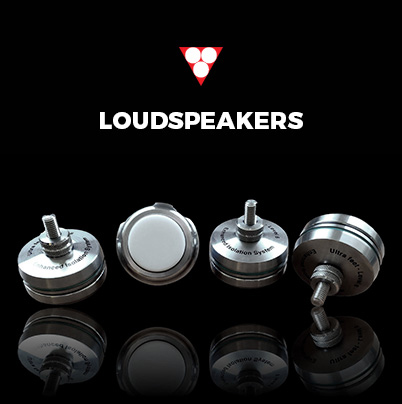

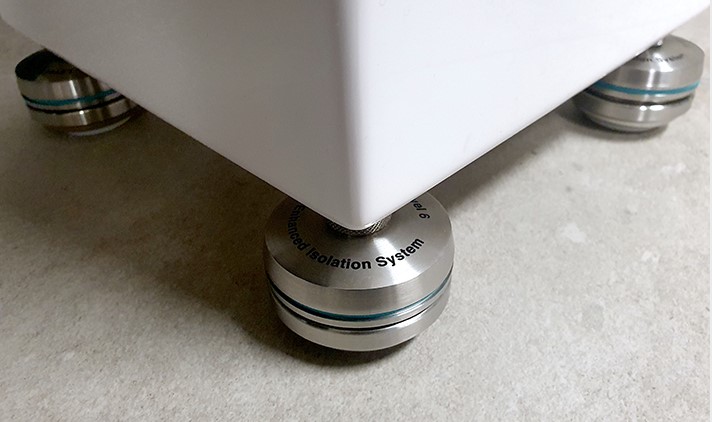

Ultra Feet
Level 6 and 7 are dedicated to
loundspeakers.
-

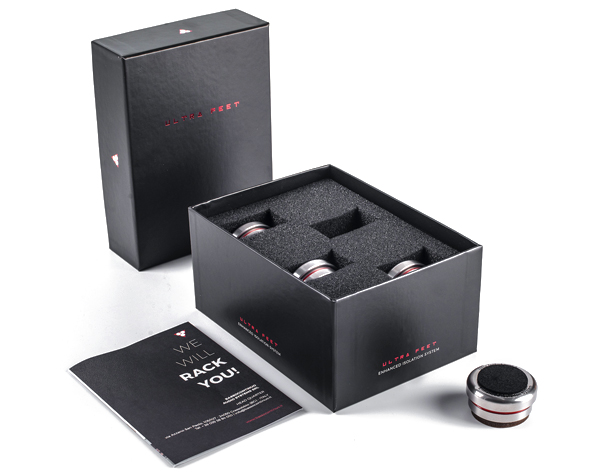

4 pieces sets
available.
Each line has its
own Ultra Feet - Buying Guide

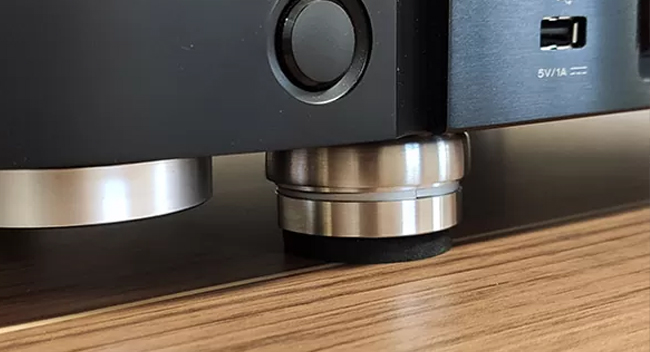

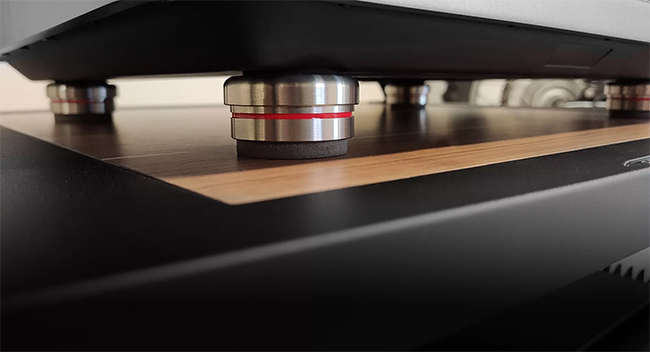

Ultra Feet works perfectly
beneath each electronic and it’s
strongly suggested under sources (turntable
and CD player). Ultra Feet is not
universal, we recommend to follow
the load chart indicators to obtain
the best performance as possible.
Each Ultra Feet level is linked to a
specific line or type of product (for

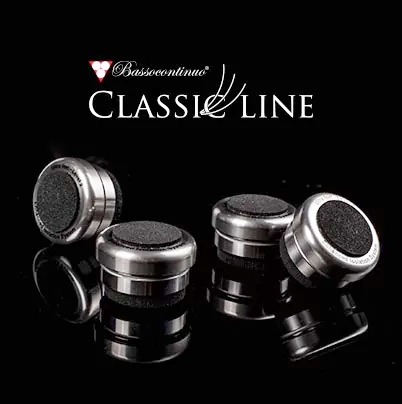

example Level 2 / Classic Line,
Level 6 / Loudspeakers), based on
materials and budget.
|
|
 |

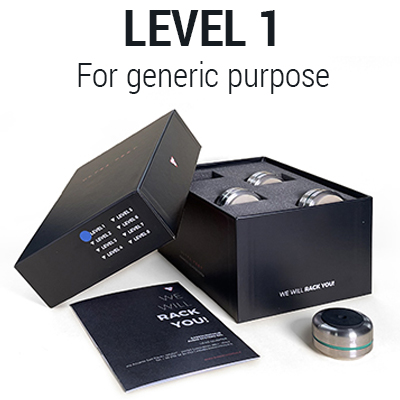

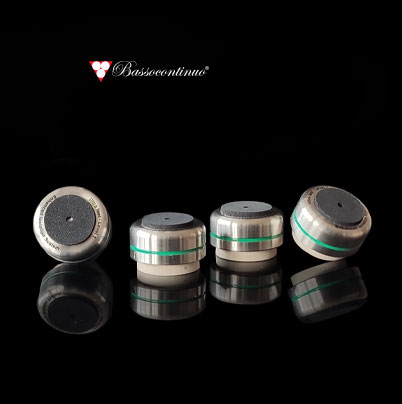

Level
1
Single
weight capacity
0,1 to 15 kg
Set of 4
weight capacity
0,4 to 60 kg
|
|
|
 |

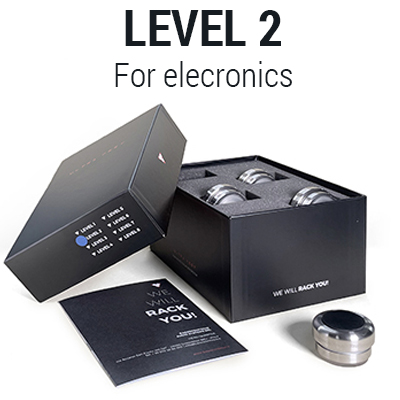

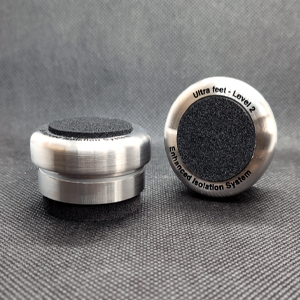

Level 2
Single
weight capacity
0,1 to 2,5 kg
Set of 4
weight capacity
0,4 to 10 kg
|
|
|
 |

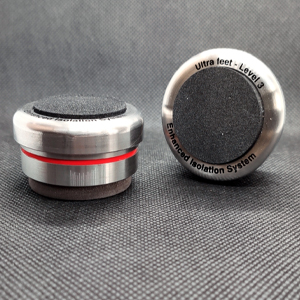

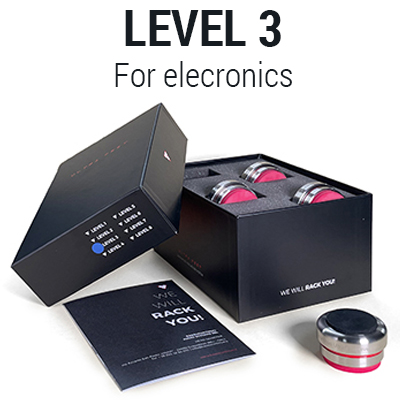

Level 3
Single
weight capacity
2,6 to 5 kg
Set of 4
weight capacity
10,4 to 20 kg
|
|
|
 |

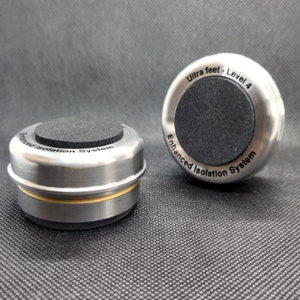

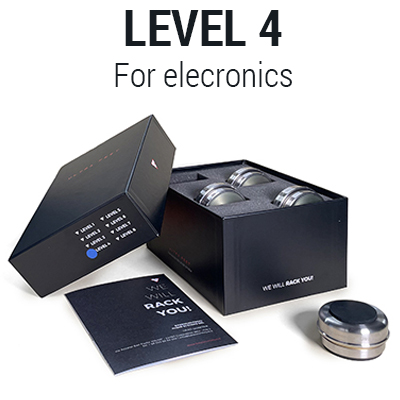

Level 4
Single
weight capacity
5,1 to 10 kg
Set of 4
weight capacity
20,4 to 40 kg
|
|
|
 |

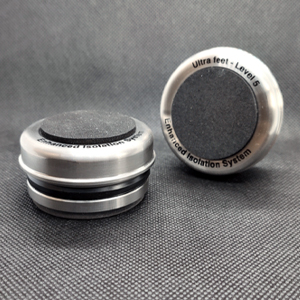

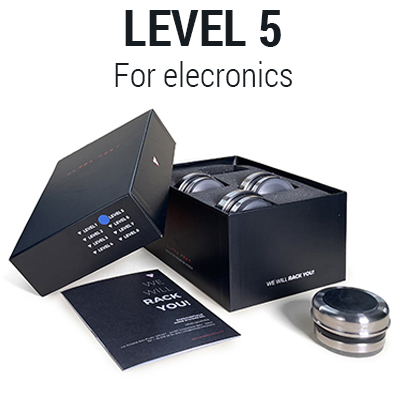

Level 5
Single
weight capacity
10,1 to 20 kg
Set of 4
weight capacity
40,4 to 80 kg
|
|
|
 |

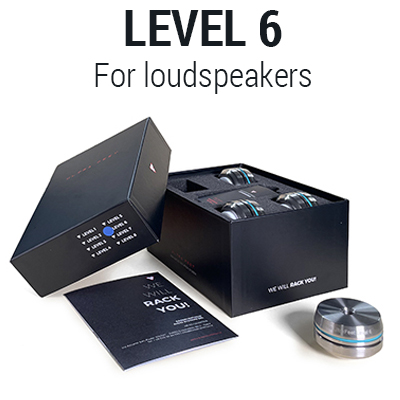

Level 6
Single
weight capacity
5,1 to 25 kg
Set of 4
weight capacity
20,4 to 100 kg
Thread
adaptors included
M6, M8, M10
|
|
|
|
|
 |

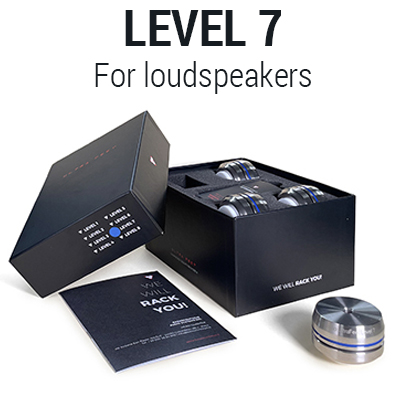

Level
7
Single
weight capacity
5,1 to 25 kg
Set of 4
weight capacity
20,4 to 100 kg
Thread
adaptors included
M6, M8, M10
|
|
|
|
 |

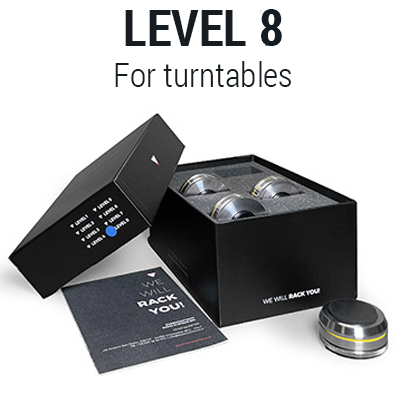

Level
8
Single
weight capacity
0,1 to 20 kg
Set of 4
weight capacity
0,4 to 80 kg
|
|
|
|
Level 6
|
|
|
|

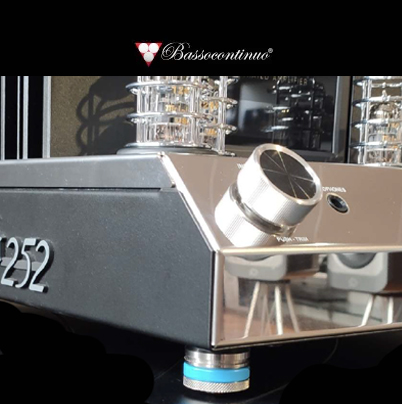

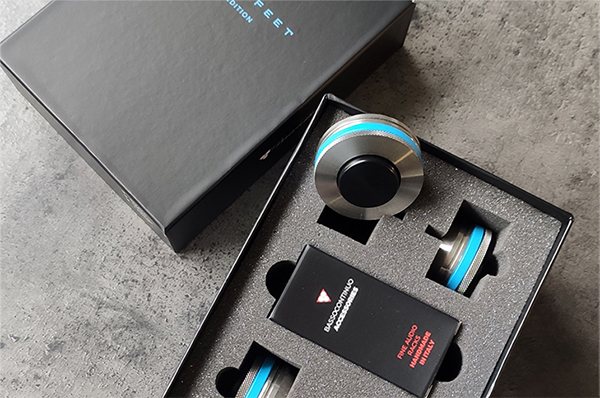

MC Edition for McIntosh products:
|
|
|
|
|
|
 |
MC Edition
• Small - Lighty Blue
• Medium - Lighty Blue
• Large - Lighty Blue
• Turntable - Lighty Blue
45 x 27mm (WxH)
Use the complete set of
4
Comparative Table Chart
|
|
 |
|
Test 1
Comparative diagram till 1000 Hz and
variable loads on the single Ultra Feet.
Present test campaign is performed with the
purpose to demonstrate that each damper
maximizes its performances when loaded in its
designed load range.
Test 2
Accelerometer
comparative diagram between 0 and 6000 Hz,
be-fore and after treatment, with Ultra Feet.
This test is performed with the aim of
highlighting the amount of harmful vibrations
absorbed by the Ultra Feet system.
|
|
>
Reviews
|
|
|
|
|
|
> documenten
|
|
|
|
|
>
Prijslijst |
Accessoires |
|
|
|
|
>
Laboratory tests
Vicoter measured the behaviour of
four damping block manufactured by
Bassocontinuo when subjected to
vibrations. In particular, during
tests, an electro-dynamic shaker
(G&W V55) is used to introduce
vibrations in dampers and two
accelerometers (PCB 333B32) are used
to measure the vibration reduction
obtained by the damping block, which
is loaded with a weight. |
