On-the-fly
precisie DSD naar PCM
Converteren
Ontworpen voor gebruik met
high-performance D/A converters,
de Aurender N10 is de enige
Music Player die on-the-fly
precisie DSD naar PCM conversie
ondersteund. Met 4 TB (2TBx2) of
8TB (4TBx2)
interne harde schijven en een
240 GB solid-state drive cache
voor het afspelen, is de N10 is
de perfecte oplossing voor zelfs
de meest uitgebreide hoge
resolutie muziekcollecties.
Designed to keep the noise
system noise level as low as
possible
Dual linear power and special
shielding prevent noise from
being delivered to sensitive
DACs for the best sound
reproduction.

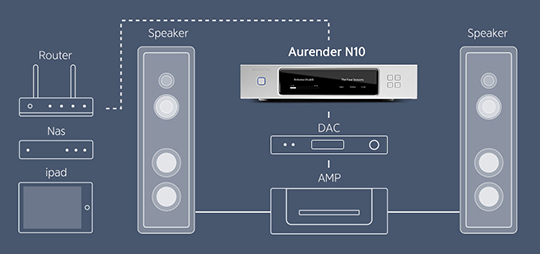

Full Range of Digital Audio
Outputs and Ports for Network
Connectivity
Designed to be matched with high
performance digital-to-analog
converters, the Aurender N10 is
equipped with various SPDIF
outputs (BNC, AES/EBU, coaxial,
optical) and one dedicated USB
Audio Class 2.0 output. For
network connectivity and file
transfers, the N10 comes with
one a Gigabyte Ethernet port and
two USB 2.0 data ports.
Aurender App Packed with
Convenient Features for
Full-Function Control
The Aurender Conductor App turns
the iPad into a versatile user
interface for Aurender Music
Server/Players. All settings and
functions of the Aurender
Server/Music Player can be
easily accessed through the
Settings menu, and the Aurender
App comes with extensive
features to make managing,
viewing and playing high
resolution music collections a
breeze.

Oven-Controlled Crystal
Oscillator (OCXO) for long-term
jitter reduction
OCXOs are among the most
accurate and stable clocks in
use today, and are orders of
magnitude more accurate and
stable than commonly used
ordinary crystal oscillators
usually found in computers.
Temperature changes cause
crystal oscillations to
fluctuate, which can lead to
jitter in the digital audio
signal. Moreover, ordinary
crystals are much less stable
and lose accuracy over time. In
OCXO clocks, a very stable,
high-grade crystal oscillator is
enclosed in a compartment and
kept at a constant temperature
to prevent jitter from
temperature fluctuations.
FPGA-based All Digital
Phase-Locked Loop System
An All Digital Phase-Locked Loop
system (ADPLL) incorporating
Field-Programmable Gate Arrays (FPGA)
with OCXO clocks precisely times
digital audio data transmissions
and minimizes jitter to below
negligible levels.
4TB Hard Disk Drive Storage
with Solid-State Drive Cache for
Playback
Two internal hard drives provide
4TB of storage and a 240G
solid-state drive is used to
cache music for playback. If a
selected song or album is
already cached to the
solid-state drive, the hard
drive will remain asleep. This
minimizes wear and tear on the
hard drive. By caching songs to
the solid-state drive for
playback, electrical and
acoustic noise resulting from
spinning disks, moving heads and
motors are also completely
eliminated.

Dedicated USB Audio Class 2.0
Output with Ultra Low Noise
Power Circuitry
The dedicated USB Audio Class
2.0 output is designed to
deliver an exceptionally
transparent audio signal free of
noise, and is shielded from
outside electronic interference.
When not in use, the power to
the USB Audio output can be shut
off depending on the USB DAC’s
requirement.
AMM and NAS(Network-Attached
Storage) Support
If you already have NAS set-up,
the Aurender N10 is able to play
music stored on NAS devices, AMM(Aurender
Media Manager) software is
available for Mac(OS X 10.9 or
later) now. Windows version will
be available later. You can run
AMM software on your platform of
choice, please specify the
location of your content on NAS
then it will automatically find
the Aurender in you local
network and make a combining
music database. It's transparent
to the user, so once you run AMM
, you can select the music with
all the meta-data using the
Aurender Conductor App without
the knowledge of the location of
your music files.
Remote Internet Technical
Support
Sending a Remote Support Request
through the Aurender App allows
engineers to quickly diagnose
and fix problems over the
Internet.
Specifications
- Compatible Formats DSD(DSF,
DFF), WAV, FLAC, AIFF, ALAC,
M4A, APE and others
Bit and Sample Rates, SPDIF: Up to 24-bit, 192kHz (PCM); 1-bit, 2.8MHz
(DSD64 USB:
Depends on the DAC specifications (PCM); 1-bit, 2.8MHz (DSD64); 1-bit,
5.6MHz
(DSD128)
- User Software Aurender
Conductor iPad App, Android App
(Lite Version)
- Solid-State Drive 1 x 240 GB
- Hard Disk Drives 4TB (2 x 2TB)
0f 8TB (2 x 4TB)
- SPDIF Clocking FPGA-based All
Digital Phase Locked Loop Audio
Clock OCXO
- Digital Audio Outputs 1
coaxial, 1 optical, 1 AES/EBU, 1
BNC, USB Audio Class 2.0
- Digital I/O 1 Gigabit LAN, 2 x
USB 2.0
- CPU Board Proprietary Aurender
Board
- Main Memory 4GB
- Finish Silver or Black
- Dimensions 430mm x 83mm x
353mm, 16.93in x 3.27in x 13.9in
- Weight 12kgs 26.4lb
