Features
- Audiophile-grade Network Hub
- Exceptional Jitter Reduction
- Outstanding Noise Suppression
- Pure Linear Power Supply
- Comprehensive Galvanic Isolation
- Premium Build Quality
|
Redefining
Network Performance for Music Lovers

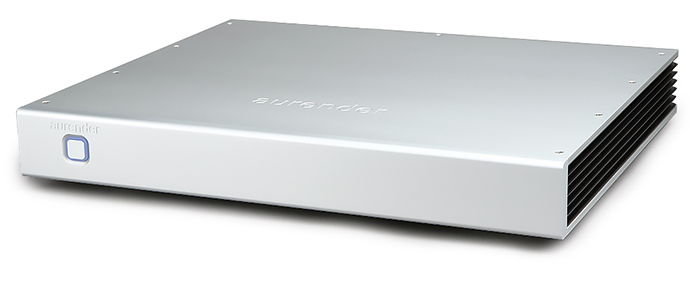

The NH10 is an audiophile-grade
network hub engineered to elevate
digital audio playback to an
entirely new level. Through clean
power delivery, precise timing, and
noise-free signal transmission, it
ensures music is reproduced with
remarkable accuracy and emotional
impact. Unlike conventional network
hubs, the NH10 embodies advanced
design principles and meticulous
fine-tuning, setting a new standard
in digital audio networking.
|
Exceptional Jitter Reduction
At its core, the NH10 features an
ultra-stable OCXO (Oven-Controlled
Crystal Oscillator) with frequency
stability rated at <0.005 ppm.
Controlled by FPGA synchronization,
all internal operations are aligned
to a single master clock,
eliminating timing discrepancies.
For even greater precision, a BNC
master clock input (10 MHz, 50 ohm)
allows integration with external
reference clocks.
|
Outstanding Noise Suppression
The NH10’s precision-machined
aluminum chassis shields against
vibration and electrical
interference, ensuring a quiet and
stable operating environment.
An LED OFF switch further reduces
noise from port activity indicators.
|
Pure Linear Power Supply

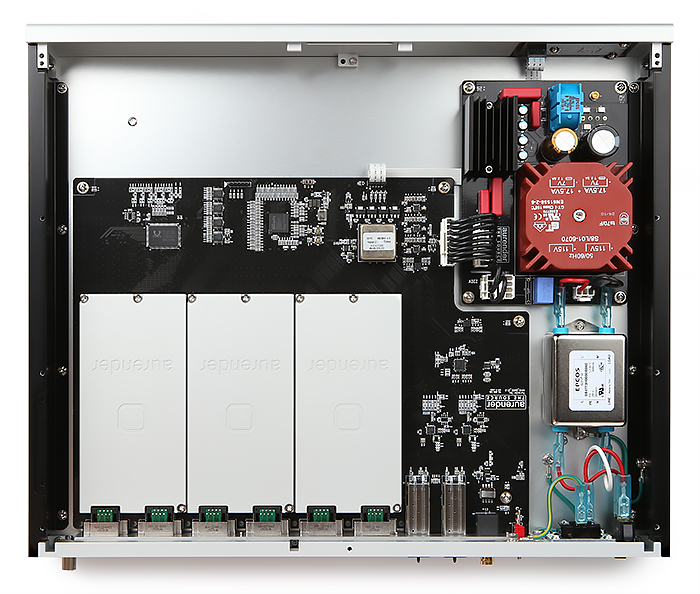

Every circuit within the NH10 is
powered exclusively by linear
regulation—without noisy DC-to-DC
converters. This approach provides
exceptionally clean power delivery,
surpassing many competing products
and minimizing power-related
distortions at the source.
|
Comprehensive Galvanic Isolation

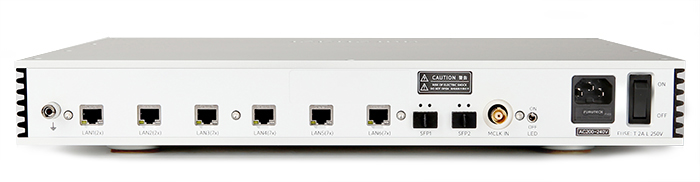

Each RJ-45 port incorporates
advanced filtering for signal purity,
while optically isolated SFP ports
provide complete galvanic isolation.
This eliminates electrical coupling
between devices and ensures
uncompromised data transmission.
|
Premium Build Quality
The robust aluminum chassis not only
enhances durability but also
contributes to acoustic performance,
providing a solid foundation for
uncompromised sound quality.
|
Specifications
- Standards Compliance: IEEE802.3i,
IEEE802.3u, IEEE802.3ab, IEEE802.3z
- Data Transfer Rate: LAN1-6 :
100Mbps/1000Mbps, SFP1-SFP2 :
100Mbps/1000Mbps
- Number of Port(Filter) LAN Ports :
LAN1-2(2x), LAN3-LAN6(7x), SFP Ports
: 2
- Connector Type RJ-48 8pin, SFP
- Transmission Distance 100m(Max)
- LED On/Off Toggle Switch
- OCXO Spec Frequency Stability : <
0.005ppm
- Master Clock In Spec 10MHz,
0.7Vrms, BNC(50ohm)
- Input Voltage 110V / 220V (Fuse:
2A, 5mm x 20mm, Slow-blow)
- Operating Temperature 10°C to 35°C
- Size: 430 x 355 x 5.6 mm (unit
only), With Spike(6.8 mm)
- Weight 8.0kg(17.6lbs)
- Power Consumption: Stand by :
3.1W, On: Start Warm-up 26W(Max),
State Lock: 20W (Max) |
