> Hydra Typhon QR Power distributor 240V



Shunyata Research’s HYDRA TRITON power distributor was originally conceived as a reference-caliber power distributor. As the project evolved, the Triton’s size and cost escalated beyond practical limits. The file-cabinet sized prototype was temporarily shelved while options were considered to reduce the unit’s massive size and weight. Designer Caelin Gabriel created a solution by dividing the original design into two separate units. The first chassis, dubbed Triton, served as the power distributor with eight outlets. The second chassis, dubbed Typhon, was identical in size and served as a dedicated pre-filter for the Triton. This design completed Gabriel’s original vision for the ultimate audio performance power distributor.

Since its release in 2011, the Hydra Triton and Typhon became the most critically and professionally endorsed product of its kind, receiving awards and accolades from recording professionals and the world’s top magazines. Pushing the boundaries of performance through design innovation and patented science has always separated Shunyata Research product designs from others in their category.

HYDRA TYPHON QR represents an advancement in technology and performance of the original Hydra Typhon. Technologies derived from the HYDRA DENALI Series have transformed medical-imaging performance in the high-tech field of electrophysiology. Gabriel has applied these and the knowledge gained in his 25 years of research and development into the new Triton v3 and Typhon QR products. The Hydra Typhon QR includes the QR/BB technology pioneered in the Hydra Denali. However, the Typhon NICs and QR/BBs are nine times the volume of those used in the Denali.

Subjective impressions of the Typhon’s performance include enhanced spatial and low-level detail information. Many reviewers report that it recovers obscured recorded information, unintelligible words, blurred instrumental passages or ambient information that may be buried in the noise floor. Although the Triton has been critically acknowledged for reproducing state-of-the-art scale and micro-dynamic contrasts in sound, the Typhon further solidifies instruments, voices and images as vivid three dimensional characters within the recording. Some report that it expands the depth of field, perceived volume of recorded space and spatial information to the extent that it perfectly recreates the venue in which the performance was recorded.

Technology

DTCD® DESIGNED (Dynamic Transient Current Delivery)
The Typhon QR was designed using the DTCD® measurement analyzer. DTCD® Analysis is a technique that measures instantaneous current through low impedance electrical conductors and contacts. Shunyata Research uses it to optimize the design, specification and construction of parts and materials to ensure maximum current delivery performance.
‌QR/BB™ and NIC™ NOISE REDUCTION

The NIC™ (Noise Isolation Chamber) is a patented technology that reduces high frequency power line noise. NICs™ use a non-reactive ferroelectric substance that actually absorbs high frequency noise. This allows HYDRA power distributors to reduce noise without any of the negatives associated with conventional power conditioner designs. QR/BB™ is a patent pending technology that improves system dynamics especially when used with high powered amplifiers.
‌HYDRAULIC ELECTROMAGNETIC BREAKER

Common power conditioners use fuses or thermal breakers for over-current protection. Those devices may cause voltage drops, increased contact impedance, thermal noise, excessive heat generation and current limiting effects when heavily loaded. The Typhon uses a more advanced solution called a hydraulic electromagnetic breaker that can operate right up to the maximum current level without the limitations of fuses or thermal breakers.
ArNi® Conductors

Shunyata Research has developed its own proprietary ArNi® conductors. They are made using the highest grade certified copper available (OFE C10100 / Certified ASTM F68). ArNi® conductors are arrayed in a “hollow tube” VTX™ geometry. Then, they are treated with the Kinetic Phase Inversion Processor (KPIP™) for a period of 2 days.
SSF-50 SHUNYATA FOOTER

The SSF-50 is standard equipment on the Typhon QR. Power distributors react very similar to amplifiers in relationship to floor-borne vibration. Shunyata Research tested dozens of the commonly available feet and determined that none of them were adequate for use with Shunyata Research products. After researching multiple forms of energy dissipation methods, the SSF-50 was developed, providing the performance characteristics of an expensive after market footers without the exorbitant cost.
VIBRATION MANAGEMENT

The Typhon chassis is made with heavy gauge steel and aluminum. Shunyata Research has developed exclusive vibration reduction strategies and vibration reduction panels that measurably reduce resonant vibration levels.

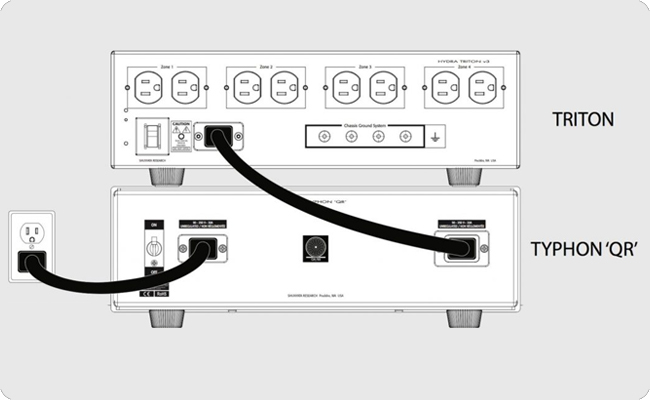

THE HYDRA TYPHON QR TO TRITON v3 CONNECTION:

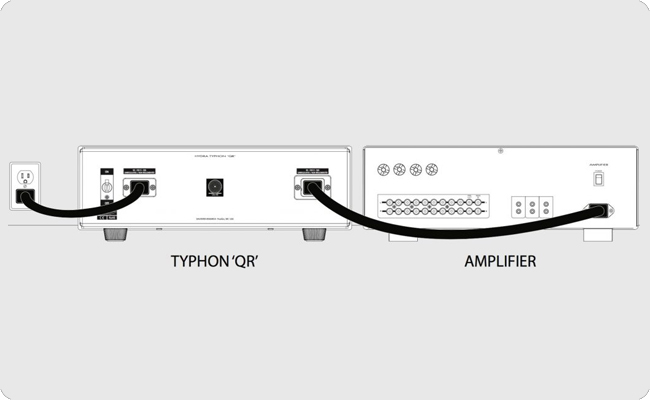

ALTERNATIVE TYPHON TO AMPLIFIER APPLICATION:

The Typhon QR may also be used as a stand-alone unit to provide power to amplifiers.  No Triton is required for this application.  Simply plug the Typhon directly into the AC wall outlet.  Then use the Typhon Umbilical cable to connect to the amplifier.  This application requires a custom termination of the Typhon Umbilical to match the inlet of the specific amplifier.

PERFORMANCE OPTIMIZATION

SETTLING TIME
The HYDRA TYPHON QR is treated with Shunyata Research’s exclusive KPIP process. This eliminates much of the drama involved in the burn-in process. The Typhon is constructed using massive wiring and heavy duty contacts throughout. Allow a few days settling time of continuous operation for best performance.

MOUNTING PLATFORMS
Ideally the TYPHON QR should be placed on a proper shelf, amp stand or solid platform. A heavy plank of hardwood or a granite slab also works well.

CONES AND FOOTERS
The TYPHON QR includes Shunyata Research’s SSF-50 isolation footer. It was designed specifically to reduce vibration from the underlying platform. You may wish to experiment with other more expensive products.

AC WALL OUTLETS
It is strongly recommended that you replace the wall outlet with a high quality commercial grade unit. The standard wall outlet is usually not ideal for high current applications. There are many audiophile grade outlets that are plated with a variety of metals including silver, gold, rhodium and others. These do not provide significant improvement over a quality commercial grade outlet. The Hubbell model 5362 or Shunyata Research’s SR-Z1 derivative of it is recommended.

OTHER POWER COMPONENTS
Using the TYPHON QR in conjunction with other power distributors, conditioners or regenerators is strongly discouraged. Connecting power conditioners in series usually gives unpredictable or poor results. Conditioners and regenerators can be highly reactive and may degrade the performance advantages built into the TYPHON QR.

CONTACT ENHANCEMENT FLUIDS
Contact fluids, pastes and gels are NOT recommended for use with this unit. Many of these types of products leave a residue that can contaminate or damage the contact metals over a period of time. The products labeled as silver-bearing grease or silver impregnated silicon are particularly harmful. Some of these are difficult or impossible to remove. Damage caused by these products will void your warranty! Never attempt to clean the contacts inside the outlets. If you wish to clean the external contacts, use CAIG DeoxIT® and DeoxIT® GOLD.

Specifications

MAXIMUM VOLTAGE
– Voltage input range: 90-250 V~
– Maximum input voltage: 250 V~
– Voltage output range: 90-250 V~ unregulated

CURRENT RATINGS
– Maximum continuous current (US): 20 A
– Maximum continuous current (EU, AU, UK): 16 A
– Maximum instantaneous peak voltage @ 8.33 ms: >2500 V~
– Maximum instantaneous peak current@ 8.33 ms: >1000 A

TRANSIENT SUPPRESSION
– Maximum transient pulse @ 8/50 μs: 40,000 A

NOISE REDUCTION TECHNOLOGY
– NIC™ Noise Isolation Chambers (patented)
– QR/BB™ Module (patents pending)

OVER-CURRENT PROTECTION
– Hydraulic electromagnetic breaker

WIRING SYSTEM
– 6 Gauge ArNi® Conductors
– VTX Conductor Geometry
– OFE C10100 Copper

SIGMA TYPHON UMBILICAL CABLE
– AC plug: IEC-C20
– AC connector: IEC-C19
– Wire: 2x 6 gauge line, 1x 8 gauge ground

VIBRATION CONTROL
– Vibration dampening panels (internal)
– AC outlet dampening gaskets
– Shunyata Isolation SSF-50 Footer

CHASSIS CONNECTORS
– Inlet: IEC-C20
– Outlet: IEC-C19

CONSTRUCTION
– Powder coated steel chassis – 16 gauge
– Anodized aluminum faceplate

DIMENSIONS
– Width: 17-1/4 in (43.8 cm)
– Depth: 17-1/8 in (43.5 cm)
– Height: 6 in (15.3 cm)
– Weight: 42 lb. (19.0 kg)
