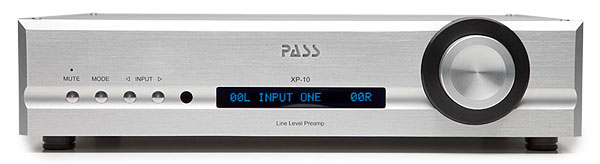

Pass Labs XP-10

> XP-10 voorversterker met afstandbediening



The XP-10 is an ultra high quality line-stage audio preamplifier featuring remote control and internal power supply. The XP-10 minimizes the number of components in the signal path, and yet retains exemplary objective performance specifications. It pushes the edge of the art by exploring how much subjective quality is obtainable with unique circuit elements applied in innovative ways.

The Pass Laboratories XP-10 along with the XP-20 pre-amplifiers are the natural descendants to the highly acclaimed and successful X series of Pass Laboratories line-stages represented by models X0.2, X1 and X2.5.

The X series pre-amplifiers have received many highly respected and well-deserved accolades over the past 11 years…. justifiably so. More importantly they have provided a solid foundation from which the current and newest product has evolved.

The new XP series pre-amplifiers are more true to state of the art recordings than our previous product. Given quality recordings, these pre-amplifiers sound more dynamic, bass lines are more clearly, cleanly, and accurately delineated, helping eliminate un-necessary one note bass; instruments and voice are presented in a more refined spatial envelope, and with better spectral balance. Fine nuances and details, which frequently go un-noticed, now become apparent -- even in loud and highly complex musical passages.

The simple truth is that a decade of knowledge and experience gained, coupled with new component technology, has enabled both enhanced performance and listening satisfaction over the building blocks we had available when the original X series pre-amplifiers came to market. Pass Laboratories has not been shy about taking advantage of these circuit innovations and new components in these new pre-amplifiers. You will hear, and appreciate, these significant sonic improvements in the XP series product.

Collectively, audiophiles tend to listen quite a bit differently today, than they did when the original X preamps were created, and the XP line of product have all been designed to reflect those changes in listening style.

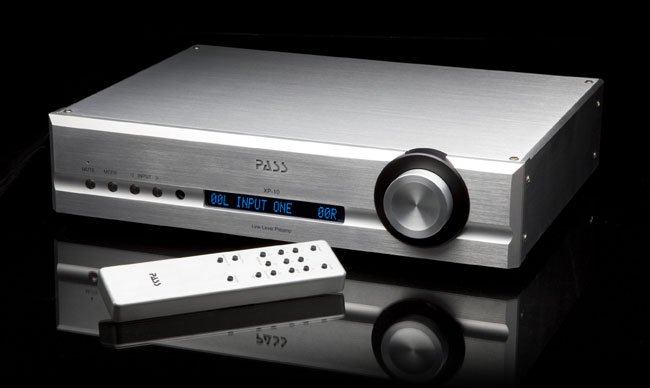

Pass Laboratories has redesigned the remote control to allow direct access to the most frequently wanted control functions, thus simplifying and enhancing product operation. The new remote control codes have been carefully selected to minimize the impact on other remote controlled electronic devices, allowing for more carefree product placement. Volume control steps on the new pre-amplifiers are more numerous and generally of smaller increments, giving the listener a wider choice of listening levels to better accommodate the wildly-fluctuating levels of current, verses legacy, recordings.

Changing lifestyles dictate that many audiophiles now share family space where music may be an adjunct to other activities. To better serve the needs of these listeners, these new pre-amplifiers allow for significantly more precise volume steps and greater attenuation at the very lowest volume levels.

So that these very low-volume listening levels have real world practicality, the noise floor and very fine detail retrieval of these new pre-amplifiers is dramatically superior to our previous product.

Frequently, the perception of increased detail comes at the cost of equally increased grain or edginess in the music. With this new pre-amplifier, hundreds of hours of thoughtful listening and careful adjusting have produced a product where the enhanced detail simply comes through as greater spatial refinement and dynamic accuracy; without any loss of musicality. Bass definition is better than in pervious models, highly dynamic passages typically have more weight, a more accurate leading edge with increased control and the spectral balance is more finely integrated top to bottom.

"We sincerely believe these are the finest pre-amplifiers
Pass Laboratories has built to date, without question!"



Gain: 1 / 10 dB
No. Volume control steps 64
Freq. Response: -3 dB @ 2 Hz,
-3 dB at @ 60 kHz
Distortion: approx. 0.001%
Max Output: 7V single-ended
15V Balanced
Maximum Output Voltage: 7V single-ended
15V Balanced
Output Impedance: 200 ohms single-ended
1K / leg Balanced
Input Impedance: 48K single-ended
48K per leg balanced
Number of gain paths: 4
Input voltage before overload: 11 volts
CMRR: approx. -60 dB @ 1 kHz
Output Noise Floor: less than 0.5 uV
Crosstalk: -85 dB

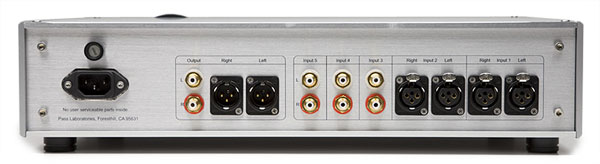

Inputs: 2 balanced
3 single-ended
Tape loop: no
External Amp turn-on: no
Remote control: yes
Power Supply: Internal
Power Consumption: 15 Watts
No. of Chassis: 1

Gewicht: 12,7kg (incl verpakking)
Breedte: 431 mm
Hoogte: 101 mm
Diepte: 304 mm


> XP10 documenten


> Prijslijst Pass Labs

> Brochure Engels

> Manual Engels


> Reviews
