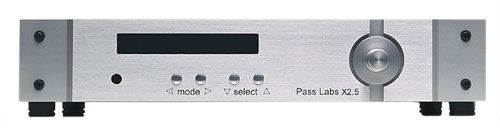

> X2.5
voorversterker met afstandbediening |
|
|
The X2.5 minimizes
space requirements by reducing all
components into a single machined
chassis, bringing the analog section,
power supply and menu display into
one attractive package. The X2.5
shares the same input and output
complement as the X1 and the X2.2.
Each of these preamplifiers has one
set of single-ended and one set of
balanced outputs. Both sets of
outputs may be used at the same
time. The significant difference
between the X2.5 and the X1 is the
onboard power supply housed in the
single chassis of the X2.5. Setting
this aside, the sonic performance of
the X2.5 is outstanding, offering a
broad and deep soundstage, macro and
micro dynamics not previously seen
in preamplifiers of this price
range, and a transparency that
highlights the best features of
source components and recordings.
Variable gain settings in the X2.5
accommodate the needs of a diverse
range of power amplifiers, making
this compact preamplifier an
excellent combination of space
economy, value, and sonic
performance…
|
Gain: |
selectable 4 dB or
14 dB balanced output,
selectable 4 dB or 14 dB
single-ended output |
Freq. Response: |
-3 dB @ 2 Hz, -3dB @
100kHz |
Distortion: |
< .1 % THD typically
.003% @ 2 volts @ 1kHz |
Max Output: |
10 volts rms bal
out, 7 volts rms unbal out |
Output Impedance: |
200 ohms unbalanced,
750 ohms balanced |
Input Impedance: |
33k ohm unbalanced,
66k ohm balanced |
CMRR: |
typical -55
dB, 1kHz |
Crosstalk: |
typical -85
dB, 1kHz |
Noise
floor: |
< -125dBV, 20-20kHz |
Output Noise: |
Ext. Amp turn on: 12
Volts DC mA continuous. |
Power Consumption: |
35 watts |
Dimensions: |
|
|
|
Gewicht: |
12,7kg |
Breedte: |
431 mm |
Hoogte: |
89 mm |
Diepte: |
292 mm |
|
|
|
 |
|
 |


|
