> N10 Network Streamer/Server met 4 of 8TB muziek opslag en USB, S/PDIF, BNC, XLR uitgangen



On-the-fly precisie DSD naar PCM Converteren
Ontworpen voor gebruik met high-performance D/A converters, de Aurender N10 is de enige Music Player die on-the-fly precisie DSD naar PCM conversie ondersteund. Met 4 TB (2TBx2) of 8TB (4TBx2) interne harde schijven en een 240 GB solid-state drive cache voor het afspelen, is de N10 is de perfecte oplossing voor zelfs de meest uitgebreide hoge resolutie muziekcollecties.

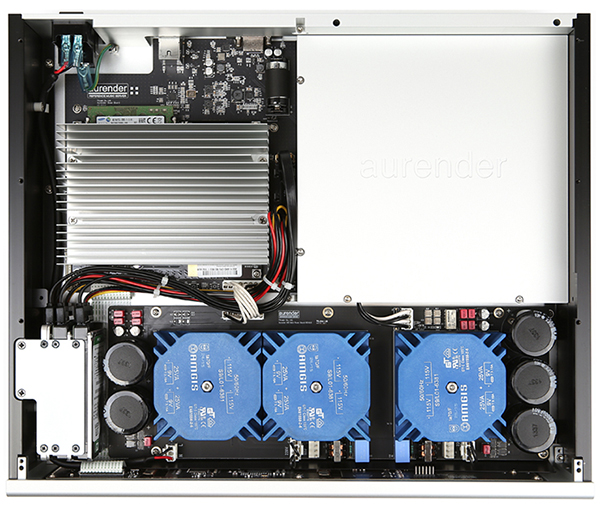

Designed to keep the noise system noise level as low as possible
Dual linear power and special shielding prevent noise from being delivered to sensitive DACs for the best sound reproduction.

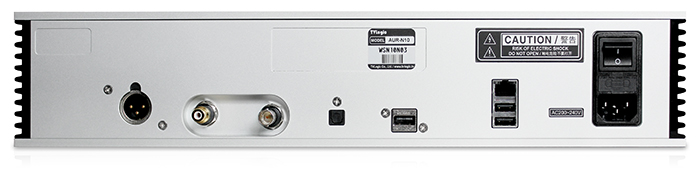

Full Range of Digital Audio Outputs and Ports for Network Connectivity
Designed to be matched with high performance digital-to-analog converters, the Aurender N10 is equipped with various SPDIF outputs (BNC, AES/EBU, coaxial, optical) and one dedicated USB Audio Class 2.0 output. For network connectivity and file transfers, the N10 comes with one a Gigabyte Ethernet port and two USB 2.0 data ports.

Aurender App Packed with Convenient Features for Full-Function Control
The Aurender Conductor App turns the iPad into a versatile user interface for Aurender Music Server/Players. All settings and functions of the Aurender Server/Music Player can be easily accessed through the Settings menu, and the Aurender App comes with extensive features to make managing, viewing and playing high resolution music collections a breeze.



Oven-Controlled Crystal Oscillator (OCXO) for long-term jitter reduction
OCXOs are among the most accurate and stable clocks in use today, and are orders of magnitude more accurate and stable than commonly used ordinary crystal oscillators usually found in computers. Temperature changes cause crystal oscillations to fluctuate, which can lead to jitter in the digital audio signal. Moreover, ordinary crystals are much less stable and lose accuracy over time. In OCXO clocks, a very stable, high-grade crystal oscillator is enclosed in a compartment and kept at a constant temperature to prevent jitter from temperature fluctuations.

FPGA-based All Digital Phase-Locked Loop System
An All Digital Phase-Locked Loop system (ADPLL) incorporating Field-Programmable Gate Arrays (FPGA) with OCXO clocks precisely times digital audio data transmissions and minimizes jitter to below negligible levels.

4TB Hard Disk Drive Storage with Solid-State Drive Cache for Playback
Two internal hard drives provide 4TB of storage and a 240G solid-state drive is used to cache music for playback. If a selected song or album is already cached to the solid-state drive, the hard drive will remain asleep. This minimizes wear and tear on the hard drive. By caching songs to the solid-state drive for playback, electrical and acoustic noise resulting from spinning disks, moving heads and motors are also completely eliminated.

Dedicated USB Audio Class 2.0 Output with Ultra Low Noise Power Circuitry
The dedicated USB Audio Class 2.0 output is designed to deliver an exceptionally transparent audio signal free of noise, and is shielded from outside electronic interference. When not in use, the power to the USB Audio output can be shut off depending on the USB DACís requirement.

AMM and NAS(Network-Attached Storage) Support
If you already have NAS set-up, the Aurender N10 is able to play music stored on NAS devices, AMM(Aurender Media Manager) software is available for Mac(OS X 10.9 or later) now. Windows version will be available later. You can run AMM software on your platform of choice, please specify the location of your content on NAS then it will automatically find the Aurender in you local network and make a combining music database. It's transparent to the user, so once you run AMM , you can select the music with all the meta-data using the Aurender Conductor App without the knowledge of the location of your music files.

Remote Internet Technical Support
Sending a Remote Support Request through the Aurender App allows engineers to quickly diagnose and fix problems over the Internet.

Specifications
- Compatible Formats DSD(DSF, DFF), WAV, FLAC, AIFF, ALAC, M4A, APE and others
  Bit and Sample Rates, SPDIF: Up to 24-bit, 192kHz (PCM); 1-bit, 2.8MHz (DSD64 USB:
  Depends on the DAC specifications (PCM); 1-bit, 2.8MHz (DSD64); 1-bit, 5.6MHz
  (DSD128)
- User Software Aurender Conductor iPad App, Android App (Lite Version)
- Solid-State Drive 1 x 240 GB
- Hard Disk Drives 4TB (2 x 2TB) 0f 8TB (2 x 4TB)
- SPDIF Clocking FPGA-based All Digital Phase Locked Loop Audio Clock OCXO
- Digital Audio Outputs 1 coaxial, 1 optical, 1 AES/EBU, 1 BNC, USB Audio Class 2.0
- Digital I/O 1 Gigabit LAN, 2 x USB 2.0
- CPU Board Proprietary Aurender Board​
- Main Memory 4GB​
- Finish Silver or Black​
- Dimensions ​430mm x 83mm x 353mm, 16.93in x 3.27in x 13.9in
- Weight 12kgs ​26.4lb





> N10 documenten


> Prijslijst Aurender

> Brochure Download

> Manual Aurender User Guide

> AMM (Aurender Media Manager)
Dit programma scant alle metatags en covers op de locatie waar uw muziek files staat, zodat de Aurender deze in de app kan laten zien.
Download pagina (IOS)

Download pagina (Windows)

> Ipad App: Aurender Conductor


> Reviews
